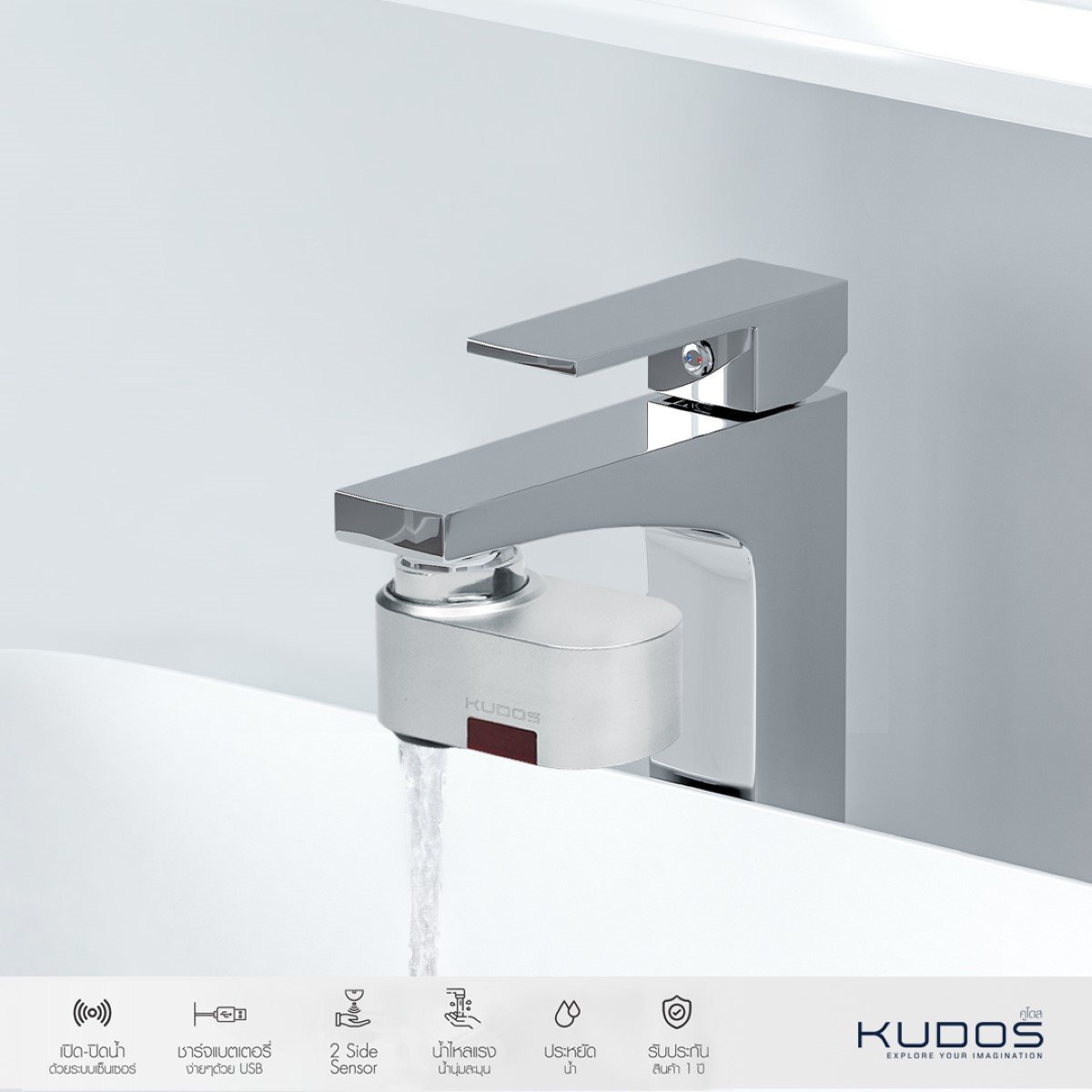

KUDOS FAUCET ADAPTER MINI TOUCHLESS FAUCET ADAPTER
sensor system Can accurately detect movement
• Can be used with both short and tall taps.
• Strong flowing water but soft and smooth skin.
• Help save water.
• Waterproof to IP65 standard (protected from water spray. cannot be soaked in water)
• Silver color goes with every design. compact No clutter during use
• Brass material durable to use
• Easy to install yourself Comes with standard size connectors.
Can be installed with both external and internal threaded taps
• Rechargeable by USB 1.30 hours, can be used for up to 6 months.
• 1 year product warranty
Functionality
There are 2 modes to choose from.
1. Side Sensor: for keeping water on while in use. Just wave your hand to the Touchless Faucet Sensor Adapter to turn the water on and off. (***The system will automatically turn off the water after turning on for 3 minutes***)
2. Bottom Sensor: automatic water on-off system When bringing your hand in and out of the area below the sensor system
Battery charging:
1. Charging the battery to full takes about 1.30 hours, which can be used in general residences. (Non-public use) for approximately 6 months (red indicator turns green. when the battery is fully charged)
2. In case the battery is running low A flashing light will appear. to remind you to charge the battery
***There is no kit for using the battery charger inside the box***
FAQ:
1. There is water leakage after installation.
- Check whether the rubber seal is inserted between the joints. And is the thickness of the rubber seal enough?
- Check the water pressure to be between 0.5-8 bar (0.05-0.8 Mpa).
2. Water does not flow during use.
- Check if the faucet valve is open And the water does not flow?
- Check that the sensor receiver is free from water stains, mist or dirt, if any, clean it with a damp cloth.
- Check that there are no obstructions within 30 cm from the side and bottom sensor receivers.
- In normal cases, the light will flash 1 time while in use. If the light flashes several times or does not appear Indicates that the battery is almost empty or depleted. Please recharge the battery.
3. The water line that comes out is uneven. or the water does not stop flowing
- Check that the sensor receiver is free from water stains, mist or dirt, if any, clean it with a damp cloth.
- Check that there are no obstructions within 30 cm from the side and bottom sensor receivers.
device installation procedure
1. Turn on the water to remove the dirt that remains inside the bile duct.
2. Attach the cover, rubber gasket to the tap, tape the threads and connect it to the pipe or hose.
3. Turn on-off the faucet and check for leaks in various joints.
Instructions for use
1. Do not use acid-containing liquids, hard-bristled brushes, or abrasives to clean faucets, showers, showerheads. and bathroom equipment is strictly prohibited
2. The operating area should be free from acidic, corrosive chemicals or vapors because they directly affect the external plating surface of the product. It should be installed after paint work. and the masonry work has been completed. To prevent the problem of plating surface with black spots or damage.
3. For chrome plated surface Should use a special abrasive solution.
4. If necessary, a wrench is required. Should use a thick cloth to prevent scratches from screwing on the surface of the material.
Warranty period for KUDOS products (from the date of purchase)
1. Product type: all types of faucets
2. Warranty period: Lifetime
3. Warranty details: Guaranteed leakage of ceramic valve. (Only for water leakage at the mouth of the faucet)
